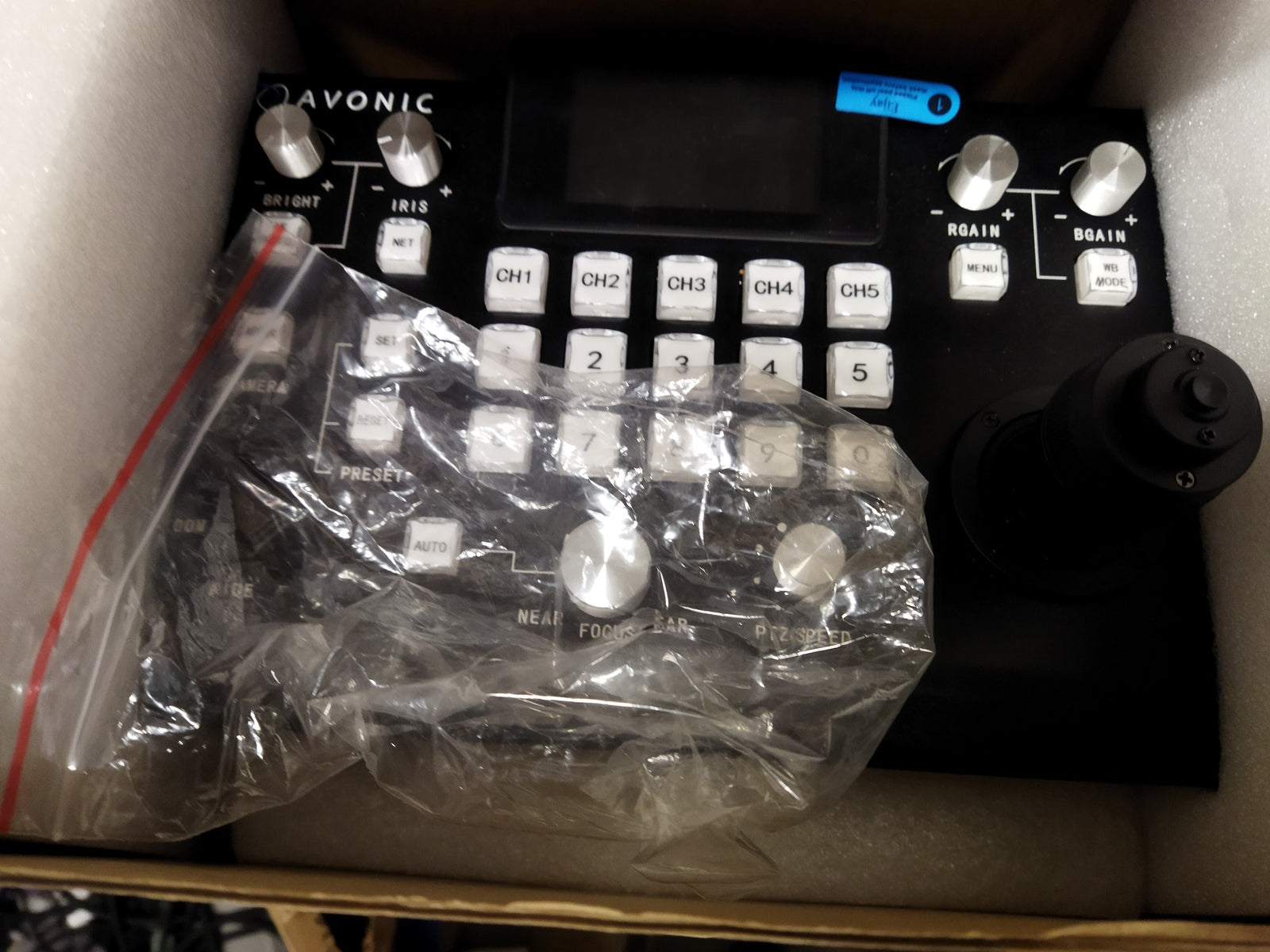

PTZ Camera Controller over IP and Serial AVONIC AV-CON300-IP

AVONIC AV-CON300-IP – PTZ Camera Controller (IP & Serial)

The AVONIC AV-CON300-IP is a professional hybrid PTZ camera controller designed for precise control of PTZ cameras over both IP networks and serial connections (RS232/RS485). It is widely used in broadcast, conferencing, education, and live production environments where reliable multi-camera control is required.

The controller supports multiple protocols, allowing integration with both modern IP-based systems and legacy serial camera installations.

Key Features

• Hybrid control: IP (VISCA over IP) + RS232 / RS485 serial control
• Supports multiple protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P
• High-precision 3D joystick for pan, tilt, and zoom control
• Control of up to 255 cameras (IP systems)
• Up to 10 presets per camera for quick recall
• Direct control of key camera parameters:
  • Zoom / Pan / Tilt
  • Focus (auto/manual)
  • Iris / exposure
  • White balance / color correction
• Intuitive LCD menu interface with OSD control
• Mix of IP and serial cameras in one system
• Rack or desktop operation

Technical Specifications

• Model: AV-CON300-IP
• Type: PTZ camera controller (IP + Serial hybrid)

Control Interfaces:

• IP network (Ethernet, VISCA over IP)
• RS232
• RS485

Protocols Supported:

• VISCA
• VISCA over IP
• Pelco-D
• Pelco-P

System Capacity:

• Up to 255 cameras via IP
• Multiple serial-controlled cameras
• Up to 10 presets per camera

Controls:

• 3-axis joystick (pan / tilt / zoom)
• Dedicated function buttons for camera settings
• Speed control for PTZ movements

Physical Characteristics

• Desktop controller with ergonomic joystick design
• Built for continuous professional use
• Compact and durable housing suitable for control rooms and live production setups

Applications

• Broadcast studios
• Live events and stage production
• Conference rooms and lecture halls
• Security and surveillance camera control
• Houses of worship
• Government and corporate AV systems

Advantages for Buyers

• Works with both new IP cameras and older serial systems
• Extremely flexible multi-camera control
• Smooth and precise joystick operation
• Professional-grade compatibility with industry protocols
• Ideal for scalable AV installations
