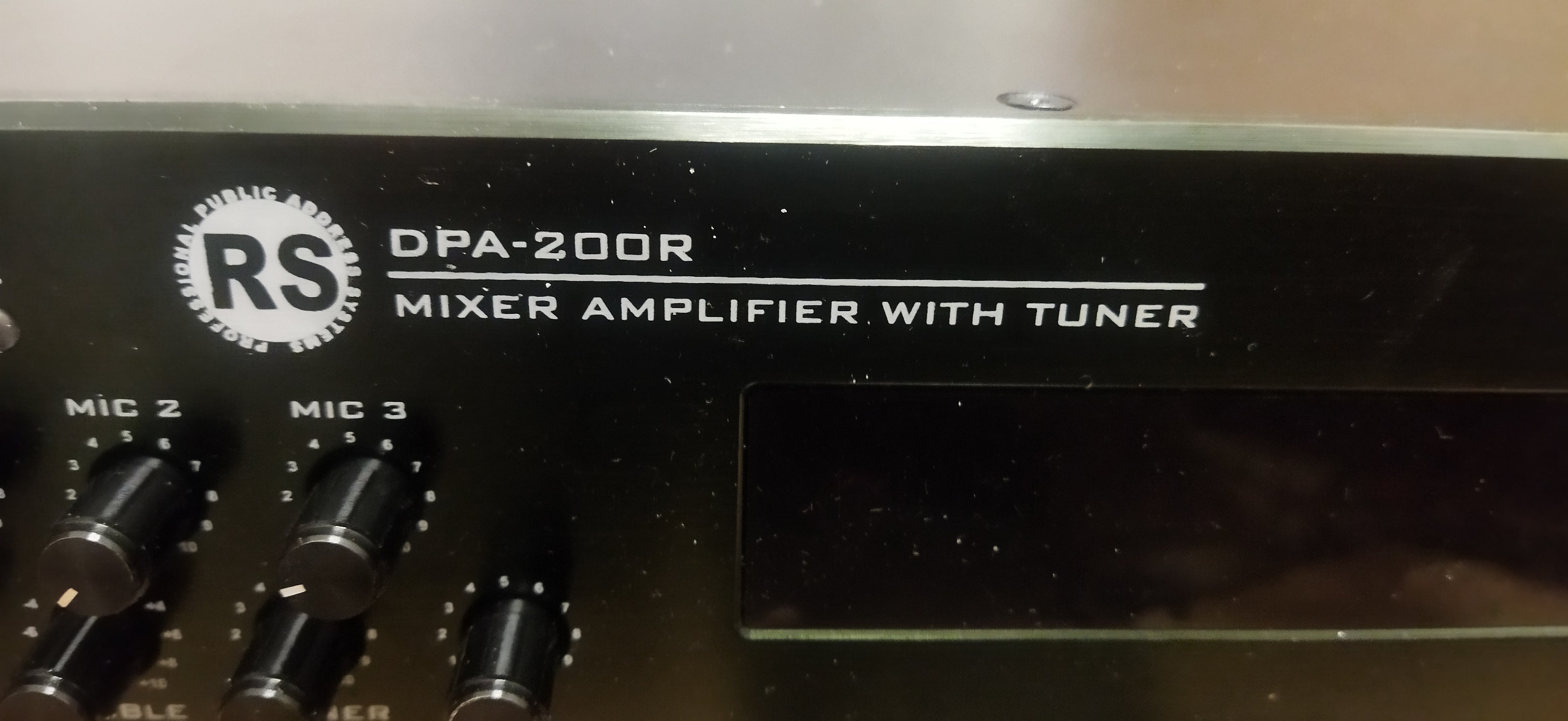

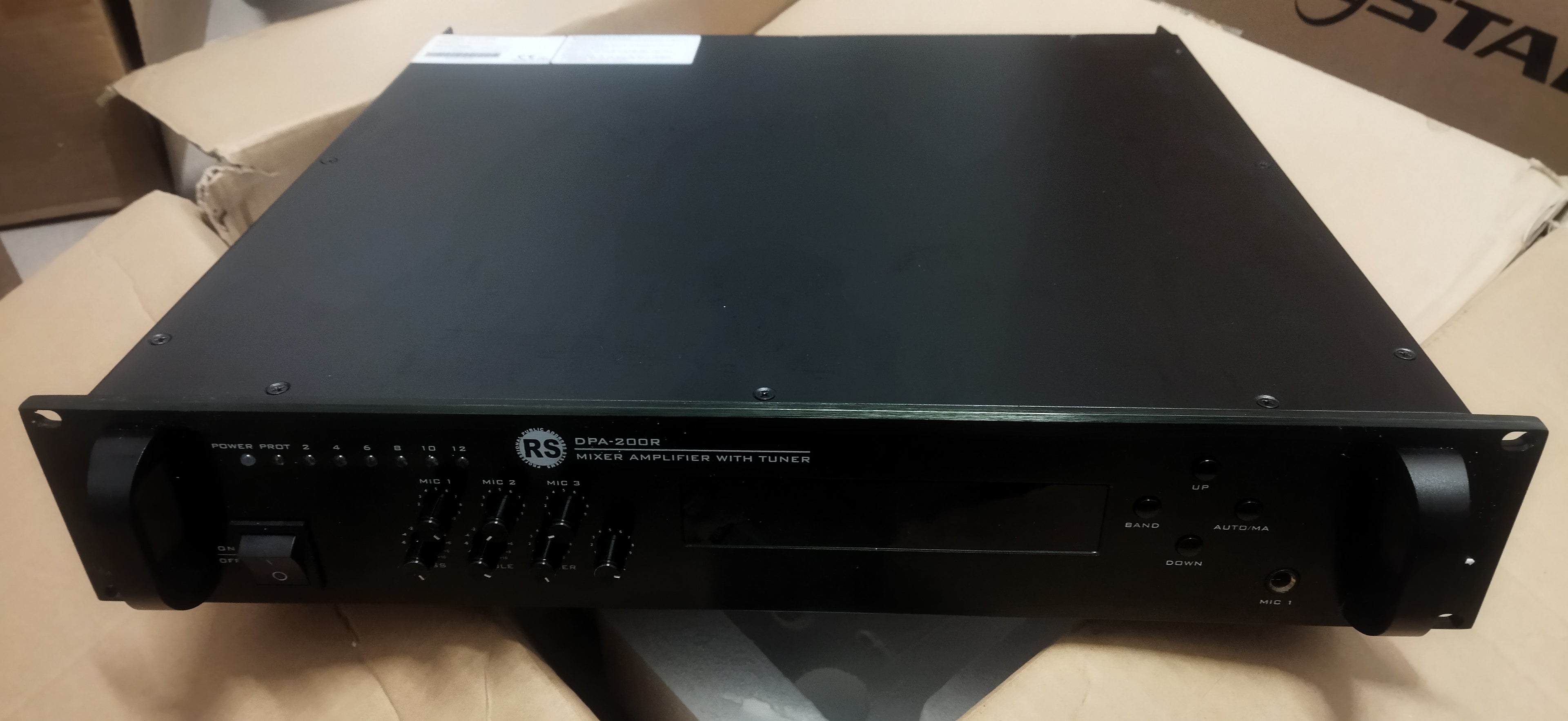

RS AUDIO DPA-200 Mixer Amplifier with tuner

RS AUDIO DPA-200R 200W Mixer Amplifier with FM Tuner – Product Description

The RS AUDIO DPA-200R is a professional 100V line mixer amplifier with a built-in FM tuner, designed for public address (PA) and background music systems. It combines a 200W power amplifier with multiple audio inputs and radio functionality, making it a versatile all-in-one solution for commercial and installation audio systems.

Ideal for use in mosques, schools, offices, retail stores, and large public areas where both announcements and radio playback are required.

Key Features

• Built-in FM radio tuner for live broadcasting
• 200W output power for 100V line speaker systems
• 5-channel mixer (microphone + AUX inputs)
• Designed for PA / announcement systems
• Independent volume controls for each input
• LED indicators for signal level and protection
• Reliable continuous operation

Technical Specifications

• Model: DPA-200R
• Type: Mixer Amplifier with FM tuner
• Output Power: 200W
• Output: 100V line system
• Channels: 5-channel mixer

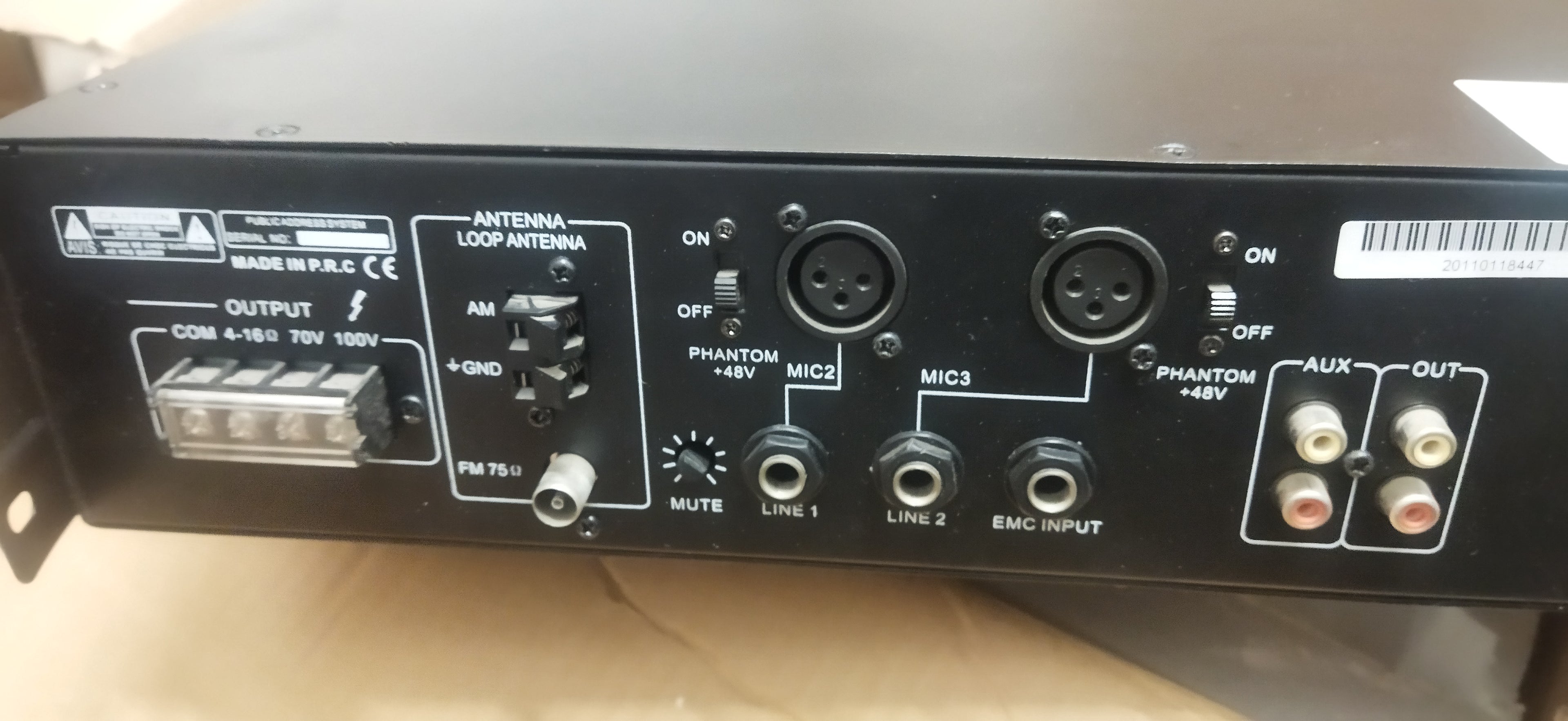

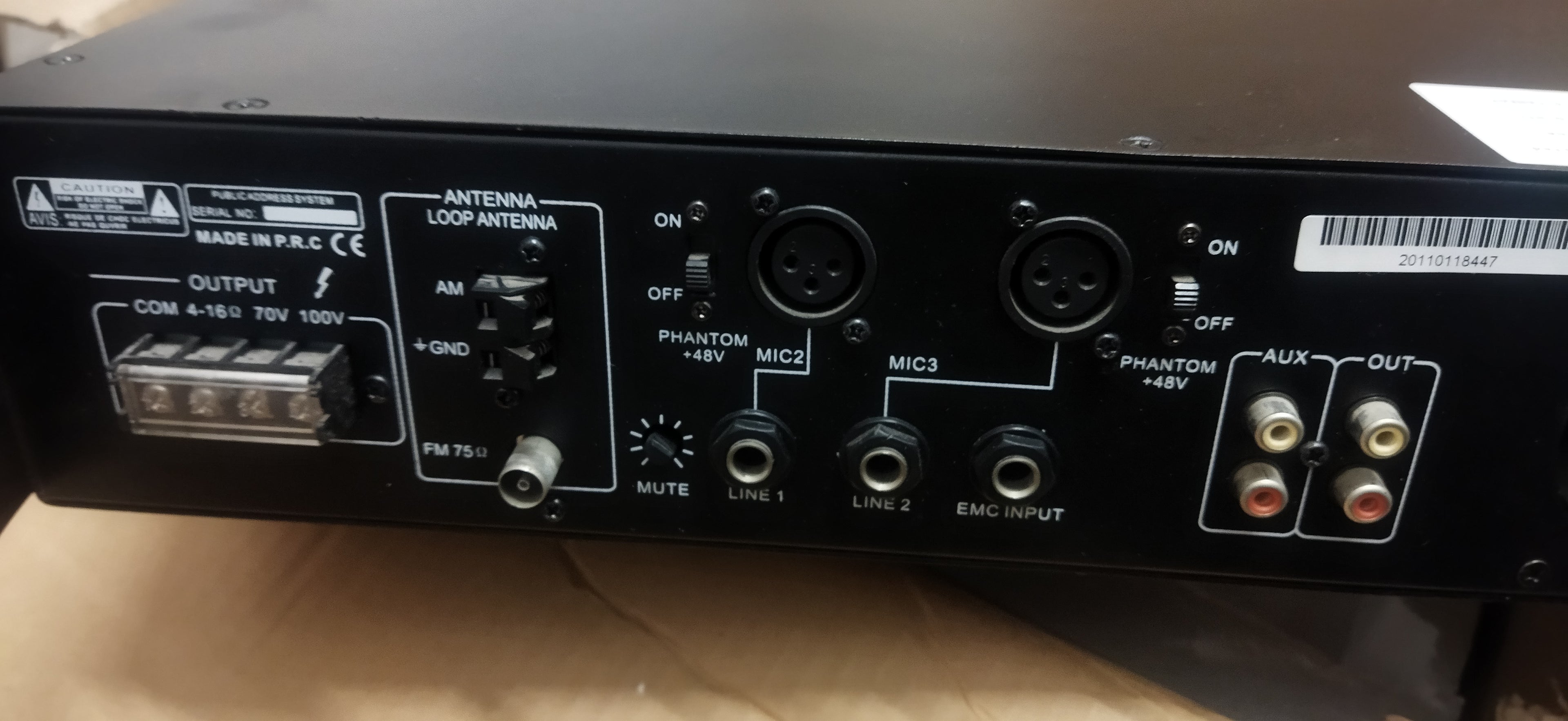

Inputs:

• 3 × Microphone inputs (5 mV / 600Ω, unbalanced)
• 2 × AUX inputs (250 mV / 15 kΩ)
• EMC priority inputs (paging override)

Audio Performance:

• Frequency Response: 50 Hz – 15 kHz (±2 dB)
• Bass Control: ±10 dB at 100 Hz
• Treble Control: ±10 dB at 10 kHz

General:

• Power Supply: 110V / 60Hz or 230V / 50Hz
• Indicators: Power LED, level meter, protection

Physical Characteristics

• Dimensions: 484 × 435 × 88 mm
• Weight: ~8.9 kg

Applications

• Public address (PA) systems
• Mosques and religious facilities
• Schools and universities
• Offices and commercial buildings
• Retail stores and warehouses

Advantages for Buyers

• Integrated amplifier + mixer + FM tuner
• Suitable for medium-sized 100V line installations
• Easy installation and operation
• Reliable and cost-effective solution
• Ideal for continuous background music + announcements
