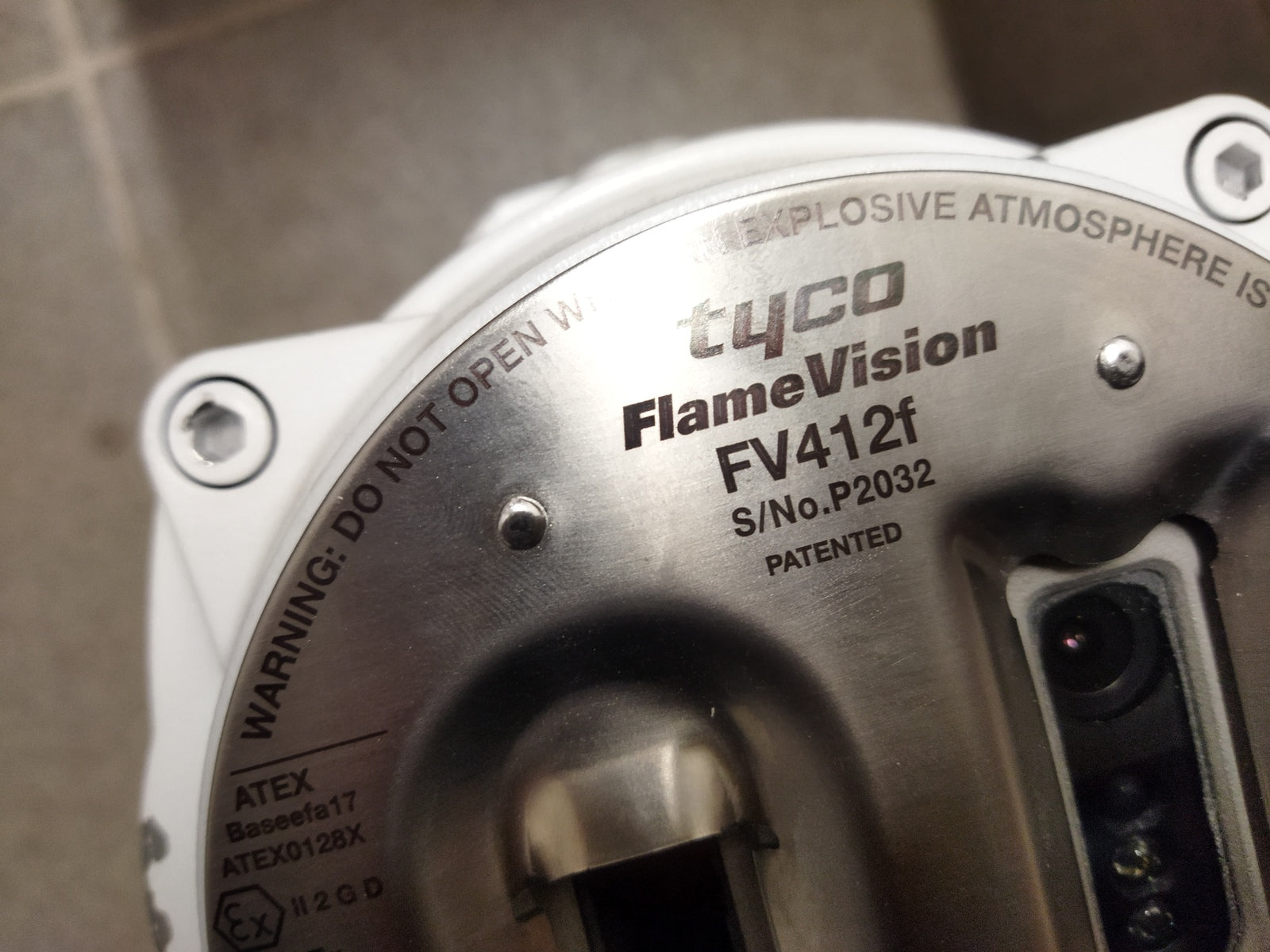

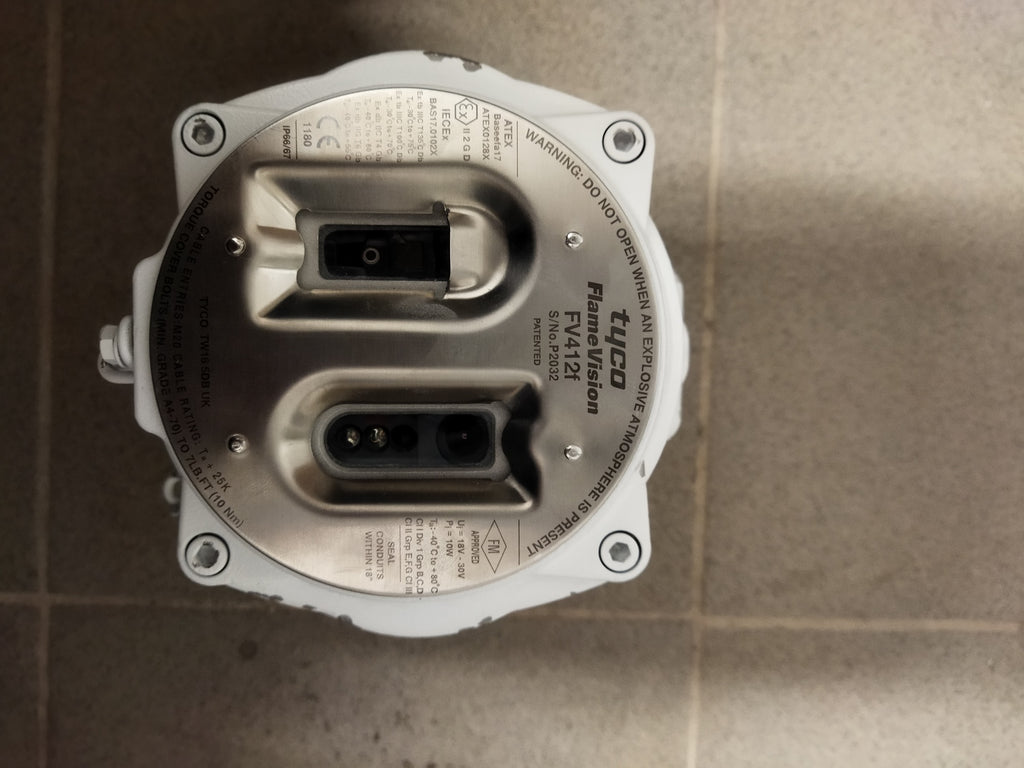

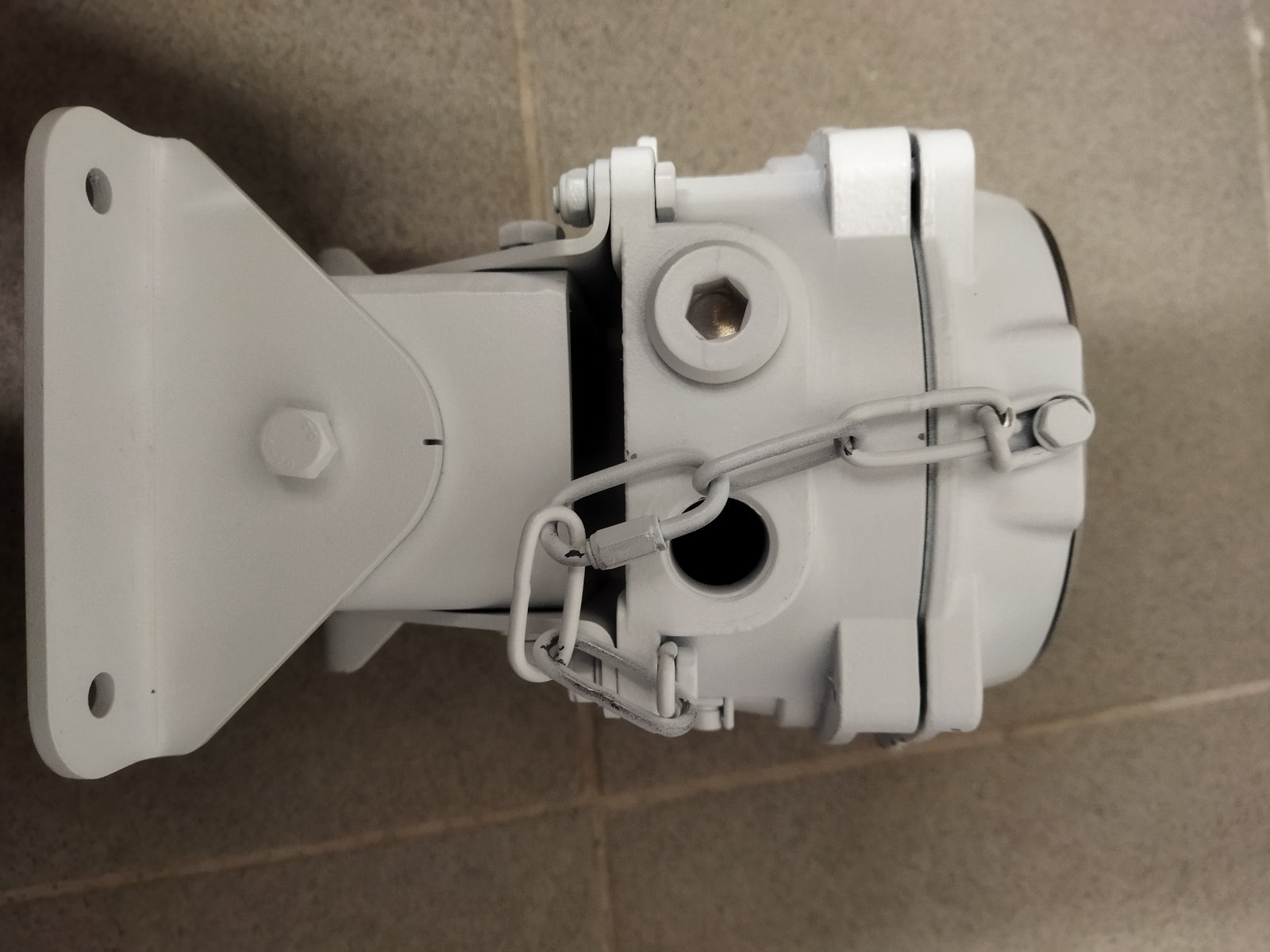

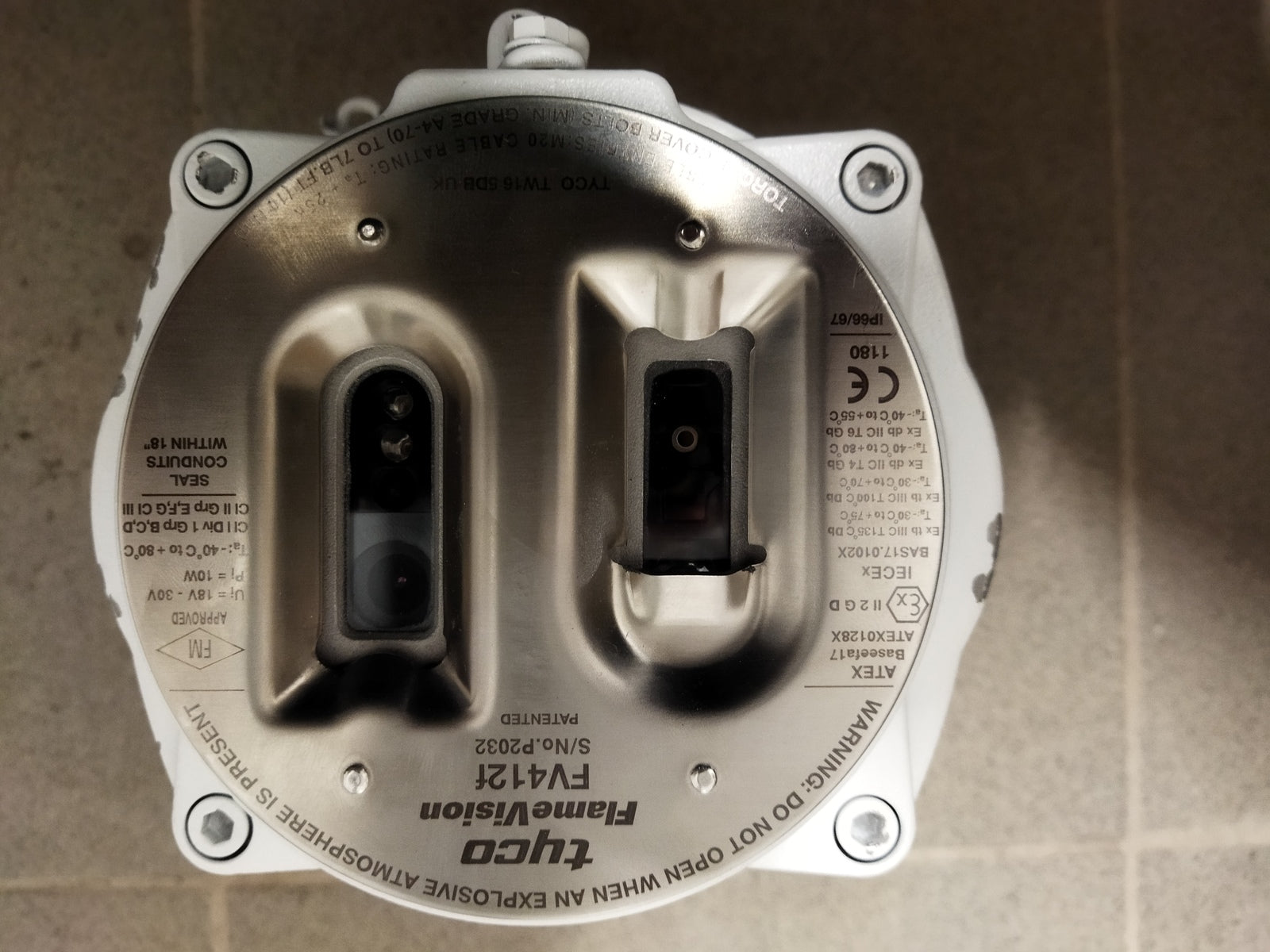

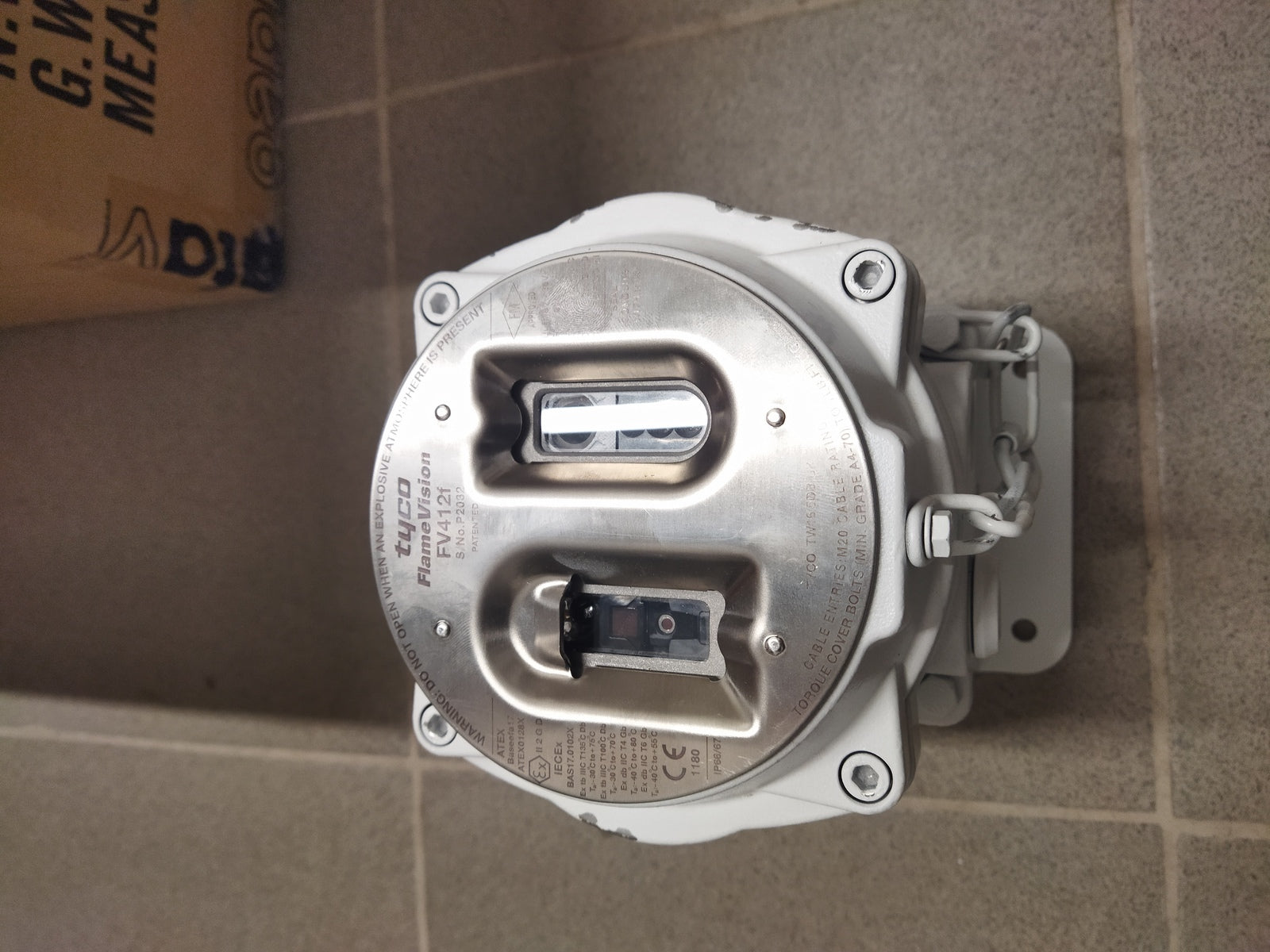

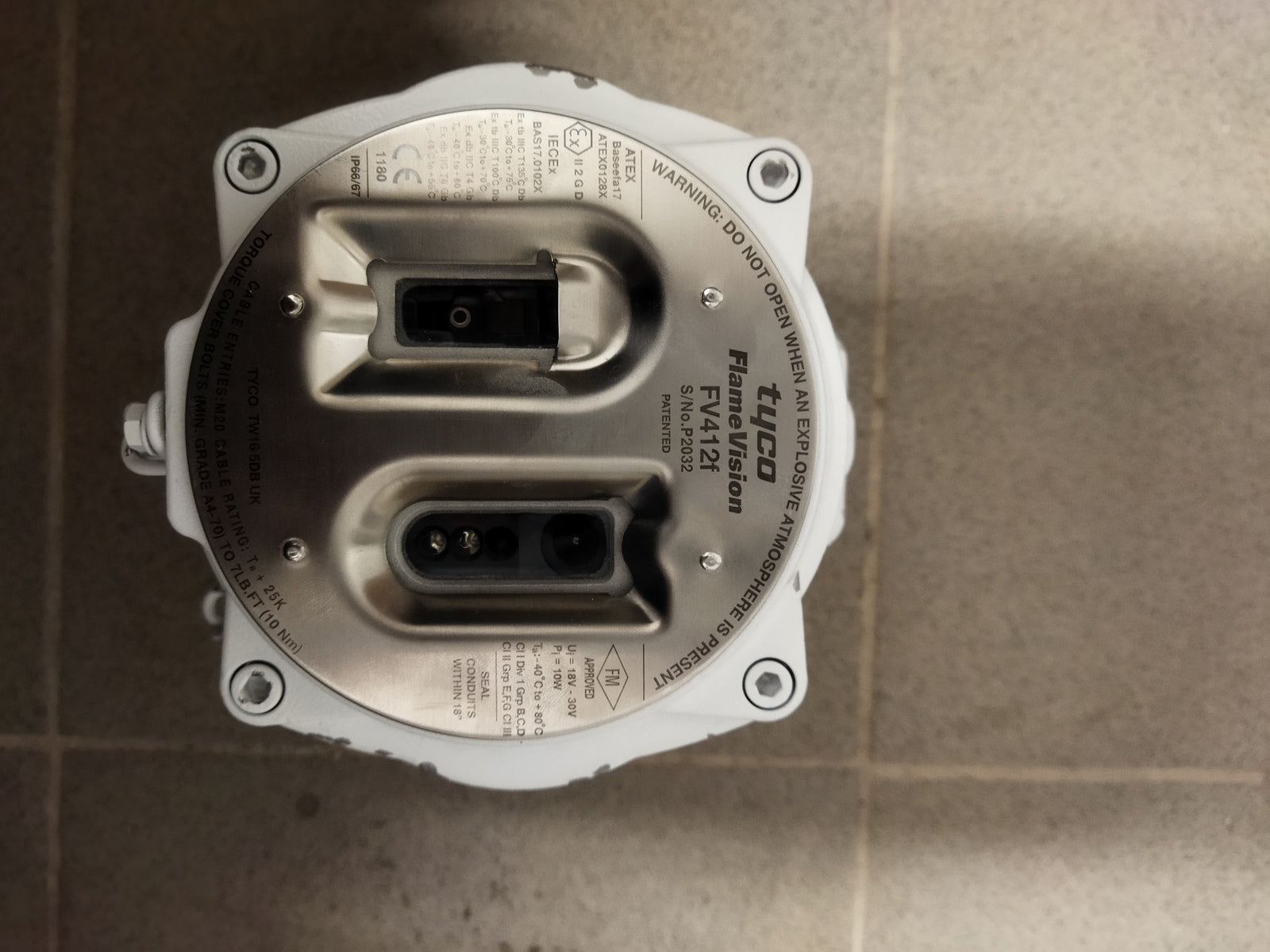

Tyco FLAMEVision FV412F – Triple IR Flame Detector

Tyco FLAMEVision FV412F – Triple IR Flame Detector

The Tyco FLAMEVision FV412F (516.300.412) is a professional industrial flame detector designed for early detection of hydrocarbon fires in high-risk environments. It uses advanced triple infrared (IR3) solar-blind technology combined with intelligent flame recognition algorithms to provide fast, reliable detection while minimizing false alarms.

This model is part of the FV400 FLAMEVision series, widely used in oil & gas, petrochemical, industrial, and hazardous-area installations where high safety standards are required.

Key Features

• Triple IR (IR3) flame detection technology
• High resistance to false alarms (sunlight, welding, hot surfaces)
• Detection of hydrocarbon fires (gasoline, oil, alcohol, aviation fuel)
• Can detect flames through smoke and vapor environments
• Detection range up to ~65 meters (for standard test fire conditions)
• Optional integrated PAL CCTV camera for visual verification
• Built-in self-check and optical path monitoring
• Multiple industrial communication interfaces (depending on configuration)
• Designed for harsh and hazardous environments

Technical Specifications

• Model: FV412F
• Part Number: 516.300.412
• Detection Type: Triple Infrared (IR3) flame detection
• Technology: Solar-blind IR sensors with flame recognition algorithms

Performance:

• High-speed flame response (early detection capability)
• Stable detection across full field of view
• Reliable performance in smoke and contaminated air conditions

Outputs / Interfaces:

• Fire & fault relay outputs
• 4–20 mA signal output (system dependent)
• Optional video output via integrated camera
• Configuration and maintenance interfaces

Physical & Environmental

• Rugged industrial housing for outdoor/industrial use
• Designed for hazardous and explosion-risk zones (depending on certification variant)
• Resistant to harsh weather, dust, and humidity
• Suitable for long-term continuous operation

Applications

• Oil & gas facilities
• Petrochemical plants
• Industrial production sites
• Fuel storage areas
• Offshore and marine installations
• High-risk fire zones requiring fast flame detection

Advantages for Buyers

• Extremely fast flame detection response
• Very high immunity to false alarms
• Works in smoke-heavy or contaminated environments
• Optional CCTV verification reduces operator uncertainty
• Industrial-grade reliability for critical safety systems

Short Sales Summary (for listings)

Tyco FLAMEVision FV412F Flame Detector – advanced triple IR industrial flame detector with up to 65m detection range, high false alarm immunity, and optional integrated camera for visual fire verification. Ideal for oil & gas, industrial safety, and hazardous area fire detection systems.
