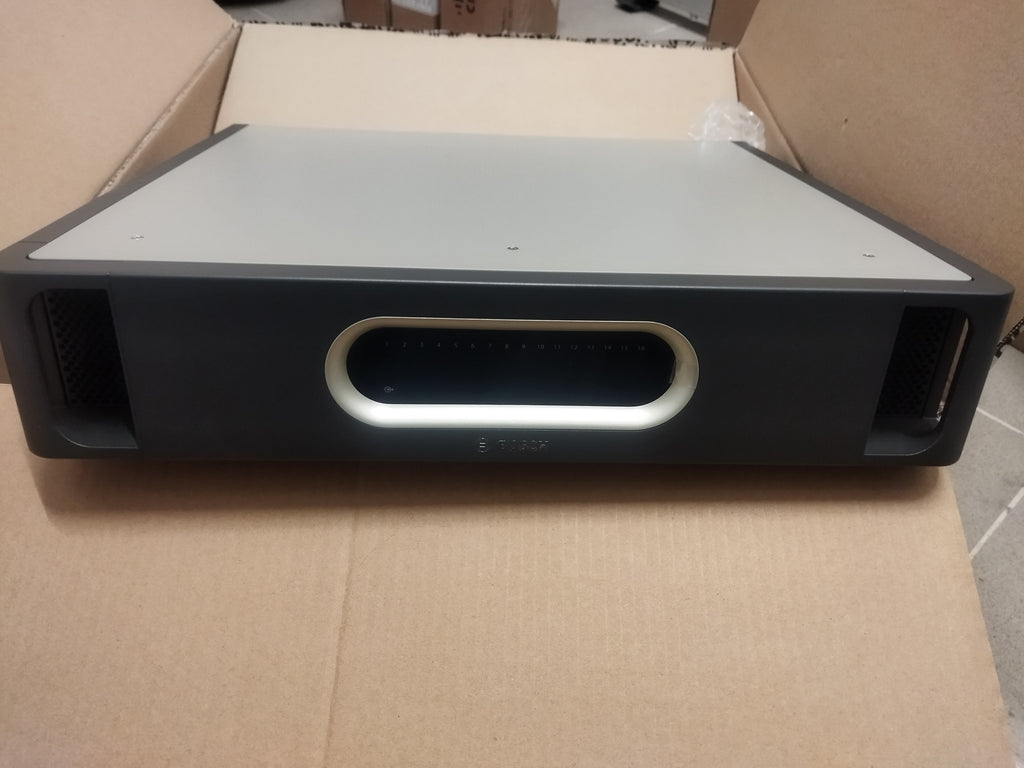

Bosch PRS-16MCI Multi-Channel Interface

Bosch PRS-16MCI Multi-Channel Interface

The Bosch PRS-16MCI is a professional multi-channel interface module designed for the Praesideo digital public address and emergency sound system. It acts as a bridge between the Praesideo network and basic power amplifiers that do not have direct network connectivity.

The unit enables reliable audio distribution, amplifier control, and full system supervision, making it ideal for mission-critical PA/VA (Public Address / Voice Alarm) installations such as airports, industrial facilities, and large public buildings.

Key Features

• Interface for Praesideo basic amplifiers
• Up to 16 configurable audio channels (14 main + 2 spare)
• Redundant fiber-optic network connection for high reliability
• 32 control inputs and 16 control outputs
• Automatic amplifier supervision and fault detection
• Automatic switching to backup amplifier in case of failure
• Fail-safe audio loop-through for emergency signals
• Configuration via Praesideo system software

Technical Specifications

General:

• Model: PRS-16MCI
• Type: Multi-channel interface (PA/VA systems)
• System: Bosch Praesideo

Audio:

• Audio Channels: 16 (14 main + 2 spare)
• Frequency Response: 20 Hz – 20 kHz (-3 dB)
• THD: <0.1% (1 kHz)
• Signal-to-Noise Ratio: >85 dB

Control & I/O:

• Control Inputs: 32 (supervised)
• Control Outputs: 16 (relay outputs, 24 V / 1 A)
• Amplifier Connections: up to 14 + 2 spare channels

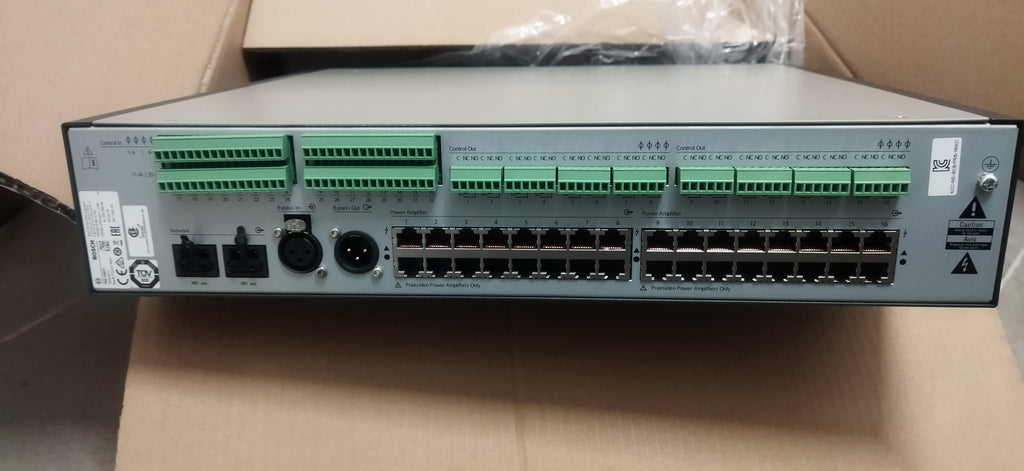

• Connectors: RJ45, XLR (loop-through), screw terminals

Network & Functions:

• Dual network ports (redundant loop)
• Full supervision of amplifiers and system status
• Automatic fault reporting to system controller
• Supports fail-safe emergency signal routing

Hardware & Power

• Power Supply: via amplifier or network / DC
• Power Consumption: ~12 W

Physical Characteristics

• Dimensions: 88 × 483 × 400 mm
• Weight: ~7 kg
• Mounting: 19” rack-mount

Applications

• Voice alarm (EN54) systems
• Public address systems (PA)
• Airports, railway stations
• Industrial plants
• Shopping centers and large buildings

Advantages for Buyers

• Integrates non-network amplifiers into Praesideo systems
• High reliability with redundant network and fail-safe operation
• Full supervision and automatic fault handling
• Scalable solution for large PA/VA installations
• Professional-grade Bosch quality
